DESIGN
An aluminum system is more than just equipment; it’s a structural foundation that supports both your business strategy and design vision. Choosing the right system demonstrates the effectiveness of your service and your skill in making smart investments.
ATTENTION TO DETAIL
-
THE PREEMINENT SHAPE
The fine line around this profile is a connecting element; a link that shows our evolution and our constant quest to create solutions that cover various lifestyle choices and various aesthetic orientations. This one is especially designed for those who enjoy a clear manifestation of limit and a visual affirmation of coziness.
-
JOINED BY AESTHETICS
This is a true lesson in precision design. Both the glass profile and shading profile are seamlessly integrated into the same frame, minimizing construction volume while elevating the overall aesthetic. The system’s durability remains uncompromised, delivering a solution you’ll appreciate for many years to come.
-
EXCEL AT THE FUNDAMENTALS
Robust, effortless to install, and consistently reliable — these are the core principles behind all our solutions. This system excels in every one of them, ensuring durability while making the installation process seamless.
Extra features
THE TECHNOLOGY

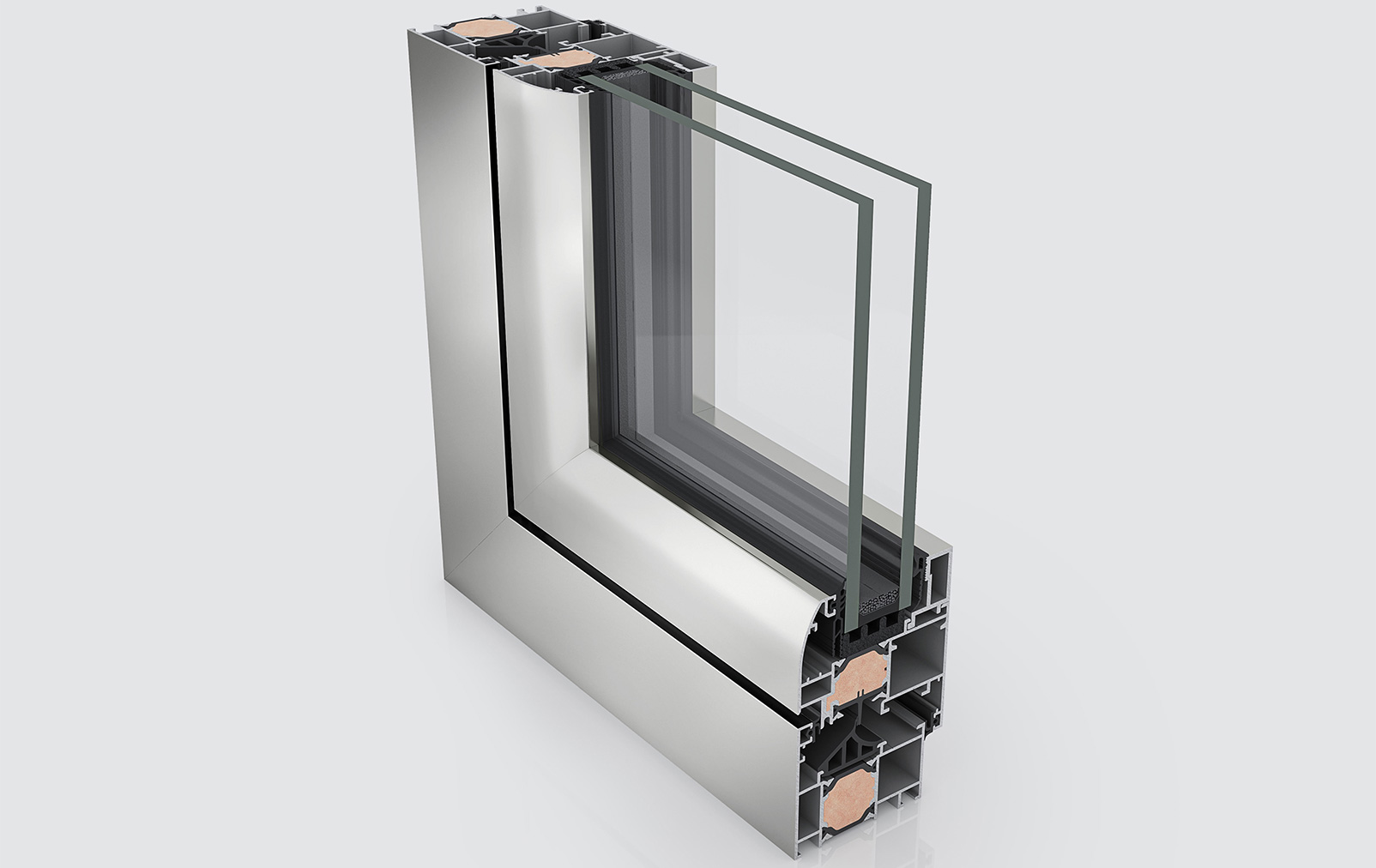

The Mediterranean climate is so enchanting that it has inspired countless songs, blessed with sunshine most of the year. And on the rare days when the sun hides, the ELVIAL W59 SI² ensures you won’t notice the difference. Inside your space, it will always feel like spring.
THERMAL INSULATION
-

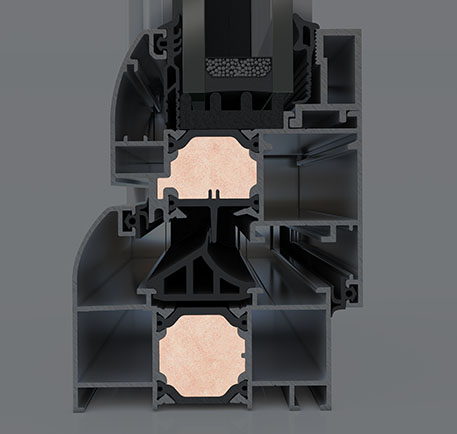

01. ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY
ELVIAL I² Technology is applied across all system profiles, creating an additional insulation zone in the middle chamber. This innovation improves the system’s energy performance [Uf] by up to 38%.
-
02. UP TO 24MM (0.94 IN) INSULATING BARS
System profiles are equipped with wide insulating bars reinforced with 25% glass fibre (24 mm / 0.94 in), ensuring high levels of thermal insulation and enhanced comfort.
-
03. GLAZING GASKETS WITH FINS
Special glazing gaskets with fins reduce heat transfer in the glazing area, contributing to better energy efficiency.
-
04. FOAM INSULATING PROFILE
A foam insulating profile is placed around the glazing perimeter to minimize thermal energy loss.

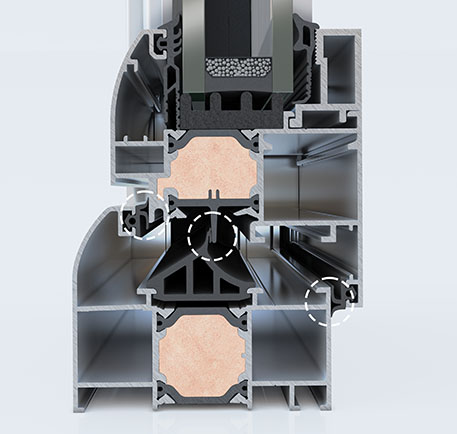

THE SEALING SYSTEM
We developed the TSS – Total Sealing System – to ensure complete waterproofing for any construction. Through vulcanization and precise assembly, every component of the window becomes fully impermeable.
-
01. OPTIMAL 3-LEVEL WATERPROOFING
Advanced 3-level waterproofing system with specially engineered EPDM and co-extruded gaskets, ensuring long-lasting protection.
-
02. EPDM GASKET CORNERS
Vulcanized EPDM corner gaskets deliver maximum sealing at the window’s edges, maintaining full protection even under extreme weather conditions.
-
03. EPDM COMPONENT FOR ADJOINING PROFILE END CAP
Double sash designs are equipped with a specialized EPDM element that connects the mullion to the central gasket. This ensures flawless alignment and a virtually impermeable seal, even in the harshest conditions.
-
04. DRAINAGE CHANNELS
All profiles are designed with dedicated drainage channels that effectively divert water away, preventing infiltration into the interior of the window.

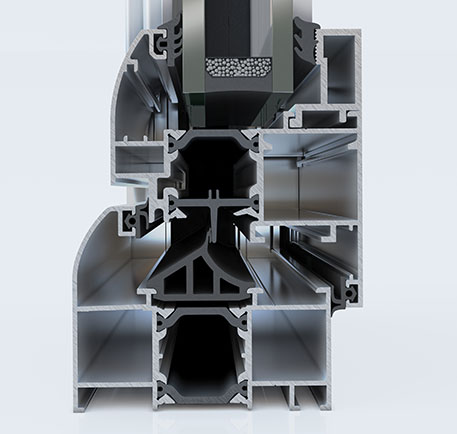

ENERGY LEVELS
Varying environmental and climatic conditions require tailored solutions. This product offers three energy efficiency levels, allowing you to choose the optimal performance for any requirement.

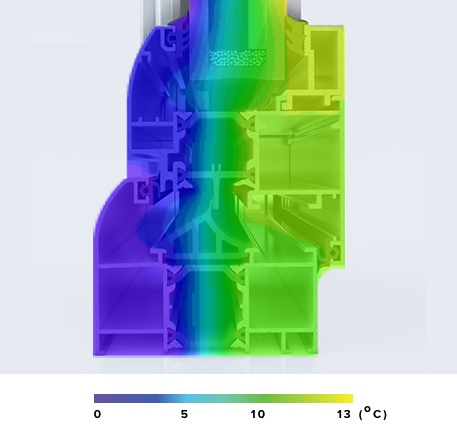

Isothermic View
THE IDENTITY
| System Depth | 69 mm (2.72 in) | |
| Min Face Height Frame–Sash | 94 mm (3.70 in) | |
| Min Face Height Threshold–Sash | 103 mm (4.06 in) | |
| Min Face Width Middle Mullion | 156 mm (6.14 in) |
| Max Sash Height | 2,300 mm (7 ft 6.55 in / 90.55 in) | |
| Max Sash Width | 1,000 mm (3 ft 3.37 in / 39.37 in) | |
| Max Sash Weight | 130 kg (286.6 lb) | |
| Max Glass Thickness | 36 mm (1.42 in) |
THE PERFORMANCE
Class 4
THE TYPOLOGIES
SINGLE SASH FIXED WINDOW
SINGLE SASH OPENING WINDOW
SINGLE SASH FIXED WINDOW
TOP HUNG WINDOW
DOUBLE SASH OPENING WINDOW
DOUBLE SASH TILT & TURN WINDOW
