Your vision and our precision-engineered solutions come together to turn every project into a benchmark of excellence — one you’ll be proud to showcase.

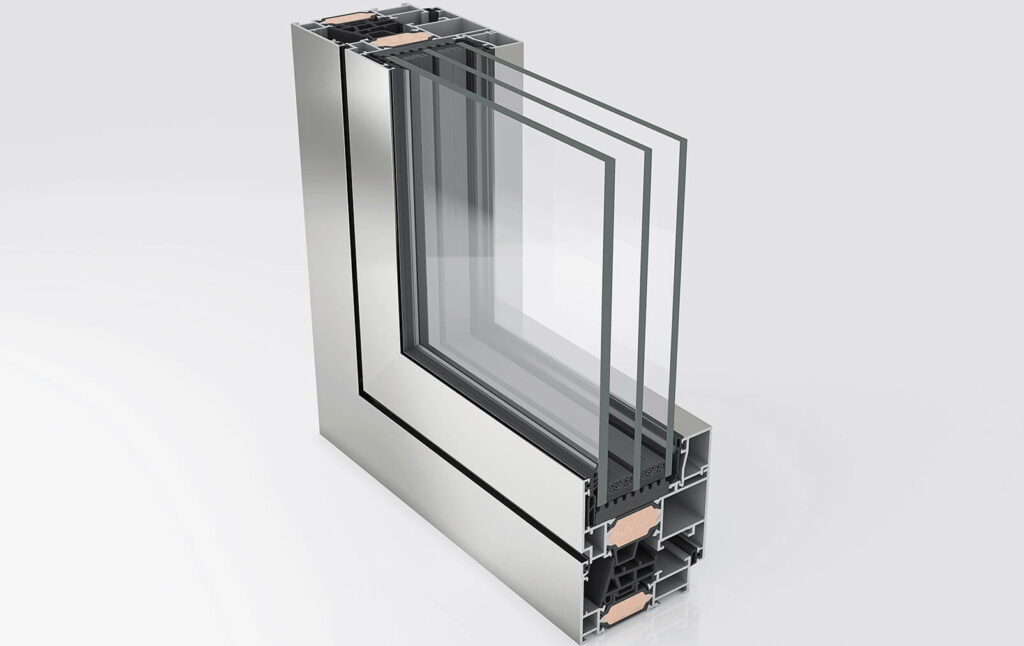

W67 HI²
This solution combines sleek design and cutting-edge technology to unlock new possibilities for you and your clients.
It’s built to deliver outstanding performance and a flawless fit with your project specifications.
THE DESIGN
ATTENTION TO DETAIL
-

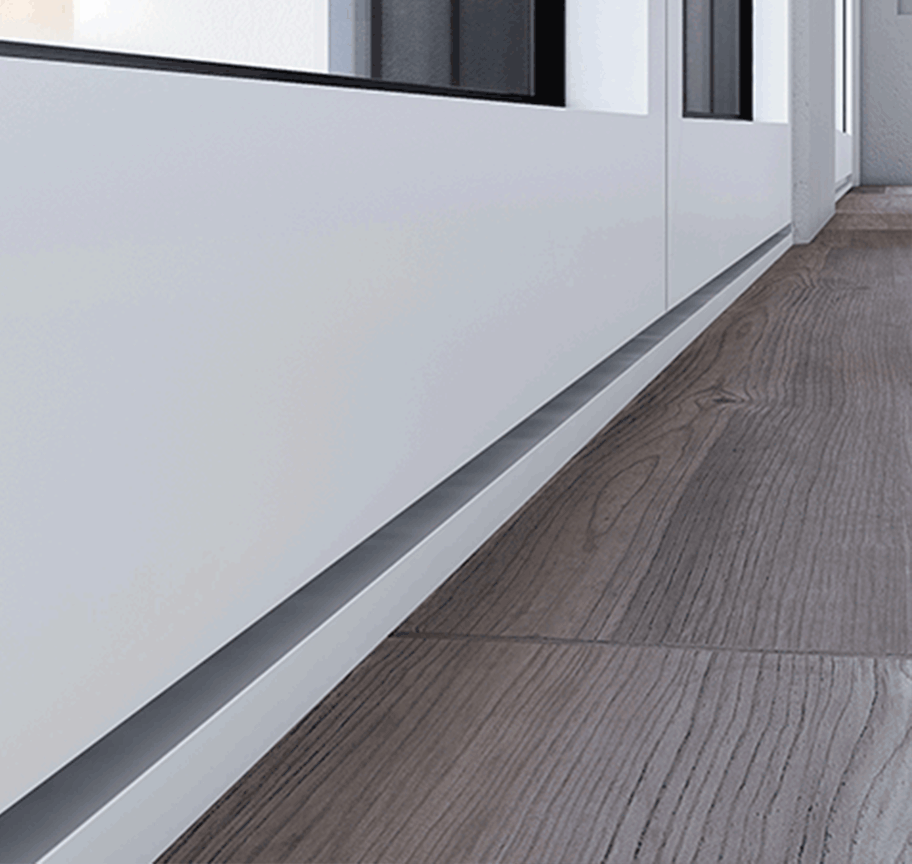

FLUSH INTERIOR DESIGN
Achieve a perfectly flush interior look with a specially engineered frame designed for seamless integration. Optimized for the use of a concealed tilt-and-turn mechanism, it delivers both refined aesthetics and superior functionality.
-
FIRM & MINIMAL
Engineered T-profiles with an inner reinforcement increase of just 10mm deliver exceptional stability for large openings — perfectly aligned with today’s modern architectural aesthetics.
Extra features
-
CONCEALED COMPONENTS
They say form follows function — we took it a step further. By concealing the functional elements, we let pure design take center stage.
-
HIDDEN HINGES
Hinges designed to open or tilt effortlessly — completely out of sight.
-
MOVE WITHOUT LIMITATIONS
The CE edition allows for a full 180º opening, even with the concealed hinge mechanism.
-
HANDLES
Handles so refined they turn industrial design into art.
THE TECHNOLOGY
It’s more than performance — it’s a feeling.
What belongs outside — noise, water, wind — stays outside.
Inside, everything remains calm, safe, and protected.
ESSENCE W67 HI² defines the boundary between comfort and the elements, with performance proven and certified by the ift Rosenheim Institute in Germany.
THERMAL INSULATION
You’ll feel it on a cold night.
You’ll appreciate it on a hot day.
And you’ll truly love it when you see the savings.
-

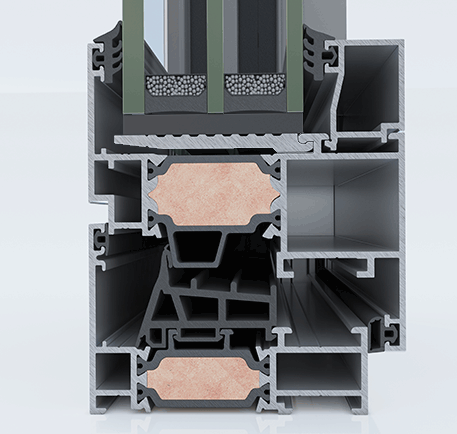

01. ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY
ELVIAL I² Technology is applied across all system profiles, creating an additional insulation zone within the central chamber. This advanced design boosts the system’s thermal efficiency (Uf value) by up to 38%, ensuring superior energy performance throughout your space.
-
02. UP TO 1.26 INCH (32MM) INSULATING BARS
Wide insulating bars, reinforced with 25% glass fiber, are integrated into every system profile. The result — exceptional thermal insulation and enhanced structural rigidity for long-lasting performance.
-
03. CO-EXTRUDED GASKET
A precision-engineered co-extruded gasket runs along the perimeter of the window, significantly improving airtightness and overall energy performance.
-
04. FOAM INSULATING PROFILE
A foam insulating profile is installed around the glazing perimeter, minimizing thermal energy loss and maximizing indoor comfort.
THE SEALING SYSTEM
We designed the Advanced Sealing System to deliver complete waterproof protection for any structure.
Through precision vulcanization and seamless assembly, every part of the window becomes fully sealed and resistant to water infiltration.
-
01. OPTIMAL 3-LEVEL WATERPROOFING
An advanced 3-level waterproofing system featuring precision-engineered EPDM and co-extruded gaskets for long-term protection and durability.
-
02. EPDM GASKET CORNERS
Vulcanized EPDM corner gaskets ensure maximum sealing at window edges, maintaining performance even in the most extreme weather conditions.
-
03. EPDM END CAPS FOR ADJOINING PROFILES
Special EPDM end caps with smart clip design provide superior waterproof integrity — even in double-sash configurations.
DURABILITY FOR A LIFE TIME
-
SUPPORT FOR GLAZING LOAD TRANSFER
AThis support system redirects the glass weight toward the inner section of the window sash, where all functional hardware components are located. By doing so, it ensures long-term stability, smooth operation, and lasting performance — regardless of the glass size or weight.

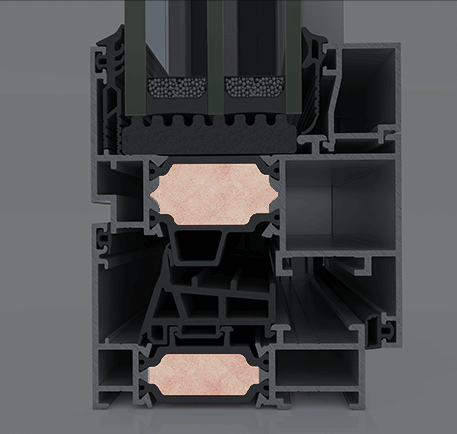

ENERGY LEVELS
Varying environmental and climate conditions call for customized solutions.
This product offers three energy efficiency options, allowing you to choose the ideal configuration for every project requirement.

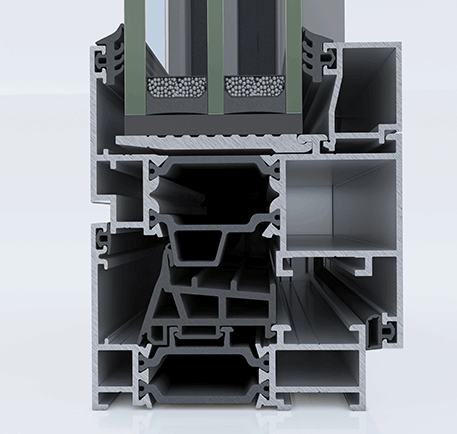

LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 1
LEVEL 2
LEVEL 3

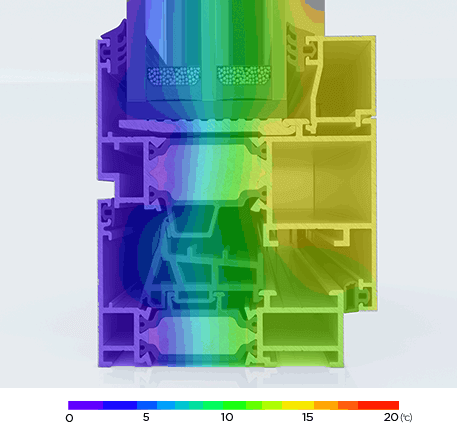

Isothermic View
LEVEL 1
LEVEL 2
LEVEL 3
LEVEL 1
LEVEL 2
LEVEL 3
THE IDENTITY
DESIGN
| System Depth | 67 mm (2.64 in) | |
| Min Face Height Frame–Sash | 89 mm (3.50 in) | |
| Min Face Width Middle Mullion | 154 mm (6.06 in) |
PROPERTIES
| Max Sash Height | 2,800 mm (9 ft 2.24 in / 110.24 in) | |
| Max Sash Width | 1,400 mm (4 ft 7.12 in / 55.12 in) | |
| Max Sash Weight | 180 kg (397 lb) | |
| Max Glass Thickness | 60 mm (2.36 in) |
THE PERFORMANCE
Uf ≥ 0.44 BTU/hr·ft²·°F
Air Permeability
Class 4
Class 4
Watertightness
E1650
Resistance to Wind Load
C5/B5
Operating Forces
Class 1
Mechanical Properties
Class 4
THE TYPOLOGIES
SINGLE SASH FIXED WINDOW
SINGLE SASH FIXED WINDOW WITH SKYLIGHT
SINGLE SASH OPENING WINDOW
SINGLE SASH FIXED WINDOW
TOP HUNG WINDOW
DOUBLE SASH OPENING WINDOW
DOUBLE SASH TILT & TURN WINDOW
DOUBLE SASH TILT & TURN WINDOW WITH FIXED
SPECIAL TYPOLOGY WINDOW WALL WITH TILT & TURN WINDOW
SPECIAL TYPOLOGY ANGULAR CONSTRUCTION
